How Radio Telescopes Capture Hidden Cosmic Signals

The Foundations of Radio Astronomy

Optical telescopes gather visible light waves to produce clear images. Radio telescopes operate in a very similar fashion. They collect faint celestial radio emissions from deep space. These instruments focus incoming energy and amplify subtle signals for detailed examination. Astronomers use these detectors to investigate distant stars, massive galaxies, and mysterious black holes. Scientists also bounce artificial radio beams off nearby planets to map their surfaces.

These specialized systems observe the longest bands of the electromagnetic spectrum. Their target wavelengths span from single millimeters to over ten meters across. Visible light waves measure only a few hundred nanometers in comparison. A single nanometer represents a tiny fraction of paper thickness. Astronomers usually classify radio light by frequency rather than physical wavelength.

Cosmic signals are incredibly faint when they reach Earth. Natural emissions travel vast distances across the universe. A standard cellular phone signal is billions of times stronger than these incoming space signals.

Primary Components of Celestial Detectors

Radio instruments exist in many different designs and dimensions. Their physical construction depends on the target wavelength range. Every system features a collecting antenna mounted on a sturdy base. The assembly always includes sensitive receiver equipment to record gathered data.

Space emissions are extremely faint and wide. Because of this, radio instruments are often massive structures. Engineers install exceptionally sensitive electronic receivers inside these structures. Modern electronic devices generate significant artificial noise. Facility operators work constantly to shield sensitive equipment from local radio interference.

Antenna Architectures and Horn Collectors

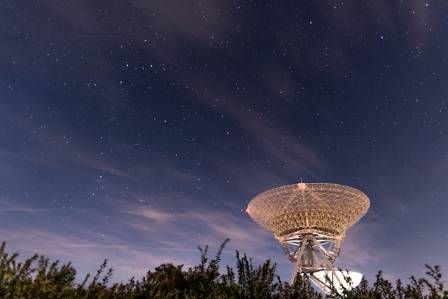

Simple dipole antennas consist of basic metal rods. Drivers use similar rods on automobiles to pick up standard audio broadcasts. Parabolic dish antennas represent the most versatile choice for research. A curved parabolic surface reflects incoming waves toward a single focal point above the dish.

Curved dishes bounce many different wave sizes simultaneously. Researchers swap specialized receiver units to study various frequency channels. Funnel devices called feed horns gather waves at the focal position. Large feed horns can reach the size of heavy utility trucks.

The narrow end of each horn matches a target wavelength. Incoming radio waves resonate perfectly against the inner walls of the matching horn. This resonance converts the horn itself into an active collector. Supercooled electronic receivers pick up these alternating pulses and convert them into digital computer signals.

Receiver Placement and Secondary Mirrors

Engineers can position feed horns directly at the primary focal point above the dish. Alternatively, they can install secondary reflectors to redirect energy downward. Primary focus setups send recorded signals along support cables to ground processing units. However, heavy feed horns create structural limits at the upper focal point. Technicians also face difficult maintenance tasks when working high above the dish.

Most large installations utilize a secondary reflector placed near the primary focus. This subreflector bounces focused energy back down into the central dish base. Operators place multiple receivers inside this convenient lower housing. Engineers can tilt these secondary mirrors to target different horns or measure local atmospheric noise.

Surface Precision and Structural Requirements

Short radio waves demand near perfect reflector surfaces. Millimeter waves scatter easily if the parabolic shape contains small bumps or imperfections. Any surface warping leads to lost scientific data.

Environmental conditions create severe design challenges for large reflectors. Strong winds and temperature changes deform heavy steel dishes. Gravitational forces pull on giant antennas as they tilt toward different targets. Engineers keep high frequency dishes small to maintain exact geometric shapes under shifting outdoor conditions.

Longer wavelengths are far more forgiving. Centimeter radio waves do not require flawless dish surfaces. Engineers build these larger structures to withstand harsh weather and continuous movement without sacrificing performance.

Mechanical Mounts and Steering Systems

Some traditional dishes rotate along a central axis aligned with the celestial pole. Equatorial mounts allow telescopes to track moving sky targets by matching the rotation rate of Earth. Building massive equatorial mounts is mechanically complex. Balancing heavy structural loads at awkward angles presents immense engineering hurdles.

Modern installations rely on computer control systems with simpler tilt and turn axes. Digital computers continuously adjust horizontal and vertical movements. This approach allows operators to steer millions of pounds of steel smoothly across the sky.

Signal Processing and Digital Analysis

Early instruments tuned into single narrow frequencies to search for specific space molecules. Modern detectors collect broad spectrum bands simultaneously. High speed computers divide incoming frequency bands into thousands of distinct digital channels. This technological leap transformed radio astronomy from basic monochrome views into rich full color analysis.

Astronomers point telescopes at target objects for hours to catch faint signals. Computer software repeatedly stacks incoming wave data. This stacking process strengthens genuine cosmic signals over time. Random background noise from electronics and the atmosphere cancels out during extended observations.

Combining Antennas into Giant Virtual Dishes

Angular resolution measures the ability of an instrument to distinguish fine details. Resolution depends directly on wavelength divided by antenna diameter. Finer details require a very small numerical result from this equation. Because radio waves are long, single dishes offer limited image sharpness.

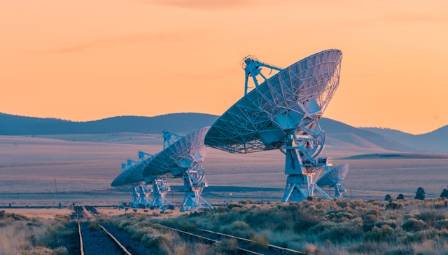

Engineers cannot build infinitely large moving dishes due to structural weight limits. Fixed natural bowls offer massive surface areas but cannot tilt fully across the sky. Astronomers solved this physical limit by combining multiple scattered dishes into linked networks.

Linked antennas observe the same cosmic target simultaneously from distinct ground locations. Radio waves arrive at each dish at slightly different times. This slight arrival difference creates a measurable phase delay between signals.

Combining offset signals creates distinctive wave interference patterns. As Earth rotates, observation angles shift continuously. This shifting movement changes the distance paths between the source and each dish. Longer observation sessions generate more unique perspectives of the target object. Placing dishes further apart sharpens the overall image resolution significantly.

Central oscillator systems distribute timing signals across fiber optic lines to harmonize all antennas. Individual receivers blend incoming data with this reference signal. High speed supercomputers called correlators merge data streams from every antenna pair. These supercomputers perform quadrillions of calculations every second to align incoming data. Specialized software then transforms these combined signals into detailed cosmic maps.

Global Networks and Atomic Timing

Spreading antennas across thousands of miles creates virtual telescopes as large as continents. Extremely wide separations produce sharper resolution and pinpoint precise cosmic locations. Scientists call this technique Very Long Baseline Interferometry.

Connecting widely separated dishes with direct fiber optic lines is technically impractical. Signal repeater stations are also unfeasible across vast continental distances. Engineers solve this synchronization challenge by installing local atomic clocks at each dish location.

Hydrogen maser clocks provide extraordinary timing precision within fractions of a nanosecond. Each station records time stamps directly onto high capacity storage drives along with cosmic data. Operators ship these physical drives to central processing hubs. Advanced digital correlators merge the recorded drive contents to complete the final astronomical image.
